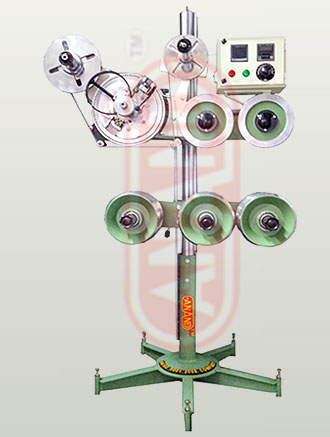

AF-760 HDPE Pipes Hot Embossing Marking Machine

AF-760 HDPE Pipes Marking Machine, Hot Embossing Sequential Color Marking Machine is specifically designed print mark on all types of hdpe pipes with large diameters.

AF-760 HDPE Pipes Hot Embossing Marking Machine supports from lowest 100mm to maximum of 700mm outside diameter.

Apart from other marking machine available in market, ANAND HDPE Pipes automatic marking machine uses latest engineering techniques for smooth operation. Hence, ANAND marking machine do not have any induction motor to drive job, it only require power for heating.

AF-760 HDPE Pipes Hot Embossing Marking Machine supports 4 digits sequential marking with the help of mechanical counter situated on marking head. It has excellent marking accuracy from 2.5mm to 9.5mm at every one meter. Apart from sequential marking, marking for company's logo, name, cable size, technical specification, etc can also be marked/printed upto maximum length of 400mm on either side of sequential marking. These marking is carried out by the sterios (Stamp) placed on the marking head.

With the help of Electronic Percentage differential circuit provided inside the Heat Controller, marking head is heated upto the desired temperature. Maximum available height of character for marking is 2.5mm to 9.5mm and counters upto 4mm. It counts total meters of cable passes through it with the help of digital monitor, which gives current position. It uses double pay up systems which helps in easy Ribbon (Tape) changing.

Additional expandability for seven digits coder can also be fitted on marking head to mark code numbers.

Specifications:

  • Specifically designed for printing in colors in all types of HDPE Pipes, Rigid PVC Pipes, uPVC Pipes Section during extrusion process.
  • Fully automatic without any induction motor. Optional motor driven models are available for offline printing.
  • Character (Stereo) Size from 2.5mm to 9.5mm.
  • Printing Speed Max. 25 Meters Per Minute - 40 Meters Per Minute without Polyester Tape.
  • Scope of marking 100mm to 700mm outside diameter.
  • Every one meter marking
  • Brass Stereos and Metal Stereos.
  • Digital counter and display provided.
  • Easy to operate and maintain.
  • Dimensions : 1955mm x 1100mm x 1050mm (H x L x W).
  • Total weight approximately 225 Kgs.
